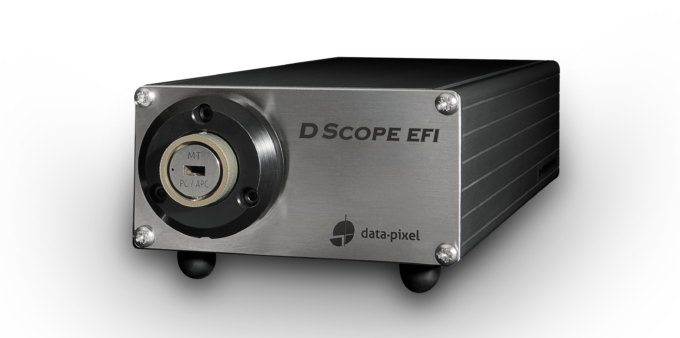

D SCOPE EFI Benchtop Fiber Microscope for Multi-Fiber Connectors

Magnification 400x; Field of View 425x320, 640x480 µm; Focus Manually; Resolution 0.5 µm; Light Source Blue LED; Connector USB 2.0 Optional Lightel’s eye-safe CI-1100 connector inspector is a portable video microscope used to inspect fiber optic connector endfaces for contamination. The handheld probe design makes it easy for users to inspect both patch cords and hard-to-reach in-adapter connectors. The CI-1100-A2 package includes a folding LCD monitor, four inspection tips, a charger/adapter and a carrying case. An optional USB adapter including ConnectorView™ software (CI-1000-USB2) is also available to display and capture images on a PC. Lightel offers a large variety of adapter tips, allowing you to view almost any connector in any location. Key Features: Magnification: 400x (With 9" Monitor), Lower Magnification Optional Field of View (FOV): ~425 x 320 µm (Standard), ~640 x 480 µm (Lower Magnification Option) Resolution: 0.5 µm Detectable Ergonomic Design Fast, Easy Focus: Manual Adjustment, Travel 2 mm Max. One-hand Operation Inspect Patchcords (Male) and In-adapter Connectors (Female) Foldable 3.5" TFT LCD Monitor Set With Adjustable Viewing Angle Portable Set With a Charger and Rechargeable Batteries Change Tips in Seconds Comprehensive Line of Tips for Both PC and APC Type Connectors Uses Lightel’s Series 2 Inspection Tips, and Can Also Use All Lightel CI-1000 Tips With an Optional Adapter USB 2.0 Option "Hot" Fiber Viewing Option CE Approved, RoHS Compliant Light Source: Blue LED Dimensions: ø 35 x 175 mm (Microscope, Without Cap), 105 x 90 x 45 mm (Monitor, When Closed) Weight: 200 g (Microscope), 255 g (Monitor, Without Battery) Applications: Inspection of Fiber Optic Connector Endfaces for Contamination; Inspection of Patch Cords; Inspection of Adapter Bulkhead Connectors

Software for Lightel USB2.0 Microscopes; Self-calibrating; Connector Types SM, MM; Adjustable Acceptance Criteria Lightel’s ConnectorView™ Plus software is designed for users needing portable automated pass/fail software to check for fiber optic connector endface contamination. Whether you want to improve objective evaluation of connector cleanliness in the field, train others to recognize acceptable standards, or improve documentation, ConnectorView™ Plus is designed to save time and improve accuracy. Use ConnectorView™ Plus software with any Lightel USB2.0 microscope:, CI-1100 with USB2.0 option, DI-1000, ViewConn® Pro VC-8200 as well as the discontinued Lightel microscopes CI-1000 and ViewConn®. Self-calibrating and virtually instantaneous, ConnectorView™ Plus software will highlight contamination and defects and create an analysis report. It will capture and save the image together with the pass/fail report. A summary report can also be automatically generated. ConnectorView™ Plus v2 offers an all new even easier to use interface and adds additional new features. It is available as a free upgrade for existing ConnectorView™ Plus users. Key Features:Self-calibrating - No Need to Constantly Re-adjust SettingsSingle Mode (SM) and Multi Mode (MM) Connector SettingsAdjustable Acceptance Criteria – Use the Default IEC 61300-3-35 Standard or Set to Your Own Corporate Requirements, Create as Many Profiles as You NeedLive or Frozen Connectors Can Be AnalyzedSimple Automated Analysis Reports or Including Detailed Notes and ObservationsSummary Reports Available in Excel or Text File for Every Saved Analysis ReportSave Only the Reports You Choose, or Save Them AutomaticallyAutomatically Locate the Ferrule or Manually Position ItInstall on Multiple Computers and Use With Multiple Lightel Microscopes (One Seat at a Time With Full Functionality Per License)System Requirements: Windows XP®, Windows Vista®, Windows 7®, Windows 8®, or Windows 10®; 32 or 64 Bit Processor; USB2.0 Port Applications: Automated Pass/Fail Tests of Fiber Optic Connector Endfaces With Lightel Microscopes; Improve Objective Evaluation of Connector Cleanliness in the Field; Training Others to Recognize Acceptable Standards; Improve Documentation

Magnification x100 to x800; Field of View 0.3 x 0.3 mm to 3.3 x 2.7 mm; Focus Manually, Auto; Light Source Coaxial, Stray Light; Output Interface USB 2.0 Data-Pixel’s D SCOPE series of digital benchtop fiber microscopes for single-fiber connectors combines high-quality optics with a modern and ergonomic design ideally suited to fiber optic applications. Four variants of the D SCOPE series benchtop fiber microscopes are available with magnifications from x100 to x800. Until the D SCOPE, most microscopes were suffering from poor illumination quality yielding variable and non-reproducible image quality even amongst scopes of the same kind. With Data-Pixel’s BLINK software and an automated inspection plugin, the D SCOPE series microscopes are able to detect and measure automatically scratches and defects compatible with industry standards or customized parameters. D SCOPE series microscopes are compatible with Data-Pixel’s SUPERVISOR software, a MES style software which is in charge of the execution, management and monitoring of the production in an assembly workshop for fiber optic connectors. Its role is to supervise machines and help operators with complete traceability of the manufacturing information. Key Features: True Koehler Optical Design for Homogeneous Lighting Real-time Detection and Analysis of Surface Defects With Blink Software Independent Gain and Contrast Levels for Fiber and Ferrule Regions Adapters for All PC & APC Connectors High-speed USB 2.0 for Live Digital Image Deep Blue Long Life LED Light Source Second Stray-light Source for Surface Cleanliness Inspection (Optional) Ergonomic Fine Focus Control Automation Capabilities USB-powered – No External Power Supply Needed Compatible With Desktop PC, Laptop, Tablet PC Applications: Detect and Measure (Automatically) Scratches and Defects on PC & APC Connectors; Detection and Measurement Compatible With Industry Standards or Customized Parameters

Fastest Microscope for MTP/MPO Connectors; Magnification x400; Defect Size Detection 0.5 µm; Autofocus; Output Interface USB 3.0, 2.0 Data-Pixel claims that its D SCOPE MT benchtop fiber microscope for multi-fiber MTP/MPO connectors is the fastest on the market. In one and the same measurement cycle, D Scope MT checks every optical fiber surface condition and allows the operator to control the cleanliness of the connector endface and guideholes. The fully automatic D SCOPE MT microscope is the ideal instrument for checking the conformity of multi-fiber connectors to industry standards. With very high measurement accuracy, D SCOPE MT has been designed for use in high-volume manufacturing environments or the most demanding laboratories. D SCOPE MT microscopes are compatible with Data-Pixel’s SUPERVISOR software, a MES style software which is in charge of the execution, management and monitoring of the production in an assembly workshop for fiber optic connectors. Its role is to supervise machines and help operators with complete traceability of the manufacturing information. Key Features: Testing of PC/APC Connectors and Ferrules From 1 to 64 Fibers Ultra-fast Measurement Time Automatic Pass/Fail Defect Analysis Automatic Focus Adjustment High Resolution Optics With Defect Size Detection of 0.5 μm Compliance With Industry Standards as IEC 61300-3-35 Real-time Full Connector Endface View Intuitive BLINK Software With Database Connectivity Compatible With Desktop PC, Laptop, Tablet PC USB-powered – No External Power Supply Needed Applications: Testing of PC/APC Connectors and Ferrules From 1 to 64 Fibers; Checking Optical Fiber Surface Conditions; Controlling the Cleanliness of the Connector Endface and Guideholes

Cost Effective; Magnification x400; Field of View 0.7 x 0.5 mm; Focus Manually, Auto; Light Source Coaxial, Stray Light; Output Interface USB 2.0 Data-Pixel’s D SCOPE PM benchtop fiber microscope for single-fiber connectors is dedicated to PANDA polarization maintaining (PM) fibers. It combines the high-quality inspection image of the D SCOPE microscope with low cost. The D SCOPE PM microscope is able to measure in real time the angular alignment of the stress elements relative to the connector key position. With Data-Pixel’s BLINK PM Aligner software, the D SCOPE PM microscope provides operators with an automated tool to control and measure PM fiber orientation inside connectors. D SCOPE PM microscopes are compatible with Data-Pixel’s SUPERVISOR software, a MES style software which is in charge of the execution, management and monitoring of the production in an assembly workshop for fiber optic connectors. Its role is to supervise machines and help operators with complete traceability of the manufacturing information. Key Features: Measures PANDA Style Fibers Magnification x 400 True Koehler Optical Design for Homogeneous Lighting Automated and Real-time Measurement Easy Calibration With BLINK PM Aligner High-speed USB 2.0 for Live Digital Image Field Stop Diaphragm Ergonomic Fine Focus Control USB-powered – No Outside Power Supply Needed Compatible With Desktop PC, Laptop, Tablet PC Applications: Measure the Angular Alignment of the Stress Elements in a PANDA PM Fiber Relative to the Connector Key Position in Real-time; Automated Control and Measurement of PM Fiber Orientation Inside Connectors

Magnification 400x; Field of View 425x320, 680x510 µm; Focus Manually; Resolution 0.5 µm; Light Source Blue LED; Connector USB 2.0 The ergonomically designed DI-1000 is Lightel's all digital video microscope probe. It connects directly to your PC through the computer's USB2.0 port. Featuring easy single-finger focusing, a built-in image freeze/capture button, and detectable resolution to 0.5 µm, the DI-1000 package includes Lightel’s free ConnectorView™ (standard) software, providing digital zoom, image display, image capture, auto-calibration and basic analysis tools. The DI-1000 uses Series 2 inspection tips and can also use all of Lightel’s CI-1000 tips with an optional adapter. Lightel’s optional ConnectorView Plus analytical software adds pass/fail analysis and detailed reporting capabilities to the DI-1000. Key Features: Magnification: 400x (With 9" Monitor), Lower Magnification Optional Field of View (FOV): ~425 x 320 µm (Standard), ~680 x 510 µm (Wide View Version) Resolution: 0.5 µm Detectable Fast, Easy Focus: Manual Adjustment, Travel 2 mm Max. One-hand Operation Inspect Patchcords (Male) and In-adapter Connectors (Female) Direct USB2.0 Connection to PC Connect to Your Smartphone With the Optional DI-1000-WIFI Adapter Power Supply: Powered by USB Connection Built-in Freeze/Capture Button Slim Ergonomic Design Rapid Tip Change Comprehensive Line of Tips Free Image Capture and Software Included Digital Zoom Pass/Fail Analytical Software Option Available Light Source: Blue LED Dimensions: ø 35 x 175 mm (Without Tip Applications: Inspection of Fiber Optic Connector Endfaces for Contamination; Inspection of Patch Cords; Inspection of Adapter Bulkhead Connectors

The digital inspection kit FBP-SD101 includes a digital fiber microscope P5000i with FiberChekPROTM software, 4 inspection tips and a case. The P5000i is a digital handheld microscope that automatically inspects and certifies the end faces of fiber connectors according to industry standards and specifications. This digital microscope provides instant pass/fail results at the push of a button, eliminating subjective and time-consuming guesswork.Compatible with multiple platforms, including T-BERD®/MTS-2000/4000/5800/6000A, 8000v2, HST-3000, Certifier40G, CellAdvisor JD720C, laptops, PCs, and Android mobile devices, the P5000i provides fast, repeatable analysis that easily integrates into existing test procedures.Kit FBP-SD101 includes: P5000i digital analysis microscope 4 inspection tips: Universal 2.5mm PC patch cord tip Universal 1.25mm PC patch cord tip SC/PC Bulkhead tip LC/PC Bulkhead tip Soft bag for microscope and accessories Carrying case for tips FiberChekPRO software installation disk QuickStart manual

Magnification 300x225 to 1710x1280 (Low), 185x140 to 1060 x 800 (High); Camera Sensor 2560 x 1920, 1/2.5 in CMOS; Particle Size Detection <0.5 µm; Connector USB, VGA Viavi Solutions’ FVAi/FVDi series of digital benchtop fiber microscopes are the ideal inspection solution for fiber connector production by giving users a single system that is scalable to optimize throughput at any stage of the production process. With onboard capabilities for fiber inspection, pass/fail image analysis, and storage, they eliminate the need to connect with an external PC. The integrated 3.5-in LCD video display gives users full control of the device without the need for an external monitor. While the FVDi provides dedicated manual focus, the FVAi has both manual and auto-focus capabilities that can significantly optimize workflow efficiency on the production floor. From post-polish qualification inspection to end-of-line compliance certification, the FVAi/FVDi microscopes are the ideal benchtop inspection solution for any fiber production facility. FVAi and FVDi are Viavi’s next-generation platforms to equip lab & manufacturing environments with the capabilities they need for fiber inspection and certification. With the FVAi/FVDi series, operators achieve high-performance fiber inspection, analysis, and certification for labs and production environments. Key Features: Operates as Both a Stand-Alone Device and with a Monitor or PC Compact Size Saves Valuable Benchtop Space No External PC or Monitor Required No Need to Focus the Fiber Manually Applications: Optimization of Throughput at Any Stage of Production; Inspection with a Fully Automated System; Documentation of Compliance to End-face Quality Standards such as IEC-61300-3-35

Magnification 356x475 µm (Low), 713x950 µm (High); Camera Sensor 2560 x 1920, 1/2.5 in CMOS, 5 MP; Live Image 640x480, 10 fps; Connector USB Viavi Solutions’ FVAm series are the industry’s first all-in-one benchtop inspection and analysis microscopes for MPO and other multi-fiber connectors. FVAm microscopes completely automate every step of the inspection and test process with unmatched speed and reliability. With the ability to automatically test multi-fiber connectors in less than 20 seconds, the FVAm microscopes equip manufacturing facilities to ensure optimized quality and performance of MPO cables and QSFP components at every stage of production. With 100% autonomous operation, lab and production technicians have everything they need to inspect and analyze MPO connector end faces to ensure quality: Automated focus, panning, and pass/fail analysis, all at the press of a button The optional integrated touchscreen display gives users full control to view live images and analysis results, pan across the end face to view each fiber, configure test requirements, and easily navigate results Select your desired acceptance criteria including IEC-61300-3-35 or customer-specific requirements Managing clean MPO connections through the production process requires systematic and proactive methods that many technicians find troublesome, confusing and time-consuming. The FVAm is designed with high-volume production use in mind so that inspection can be quickly and easily incorporated at any stage. FVAm fully automates every step of the multi-fiber inspection and test process, including focus, pan/scroll, and fiber end-face analysis. With the ability to test a 12 fiber MPO connector in under 20 seconds, the FVAm streamlines and simplifies production efficiency. From ensuring proper MPO end face polish quality, to conducting performance tests, or preparing final shipment, technicians at every stage of the MPO production process can customize the FVAm to best fit their inspection needs. Key Features: Fully Automated Inspection and Analysis of Multi-fiber Connectors With Fast Results Available With Integrated Touchscreen Built-in Fiber End-face Analysis With Acceptance Criteria to Industry Standards (IEC-61300-3-35) Test Multiple Different Connector Configurations (for Multi- and Single-fiber) New FMAG Series Adapters Easily Switch Connector Configurations Generate Certification Reports Store Results on Device or Export Applications: Guarantee Reliable MPO Production Quality With Automated Testing; Certify MPO End-face Quality to Customer Requirements and Industry Standards; Optimize Production Workflows at Every Stage; Streamline Inspection Methods With Fast and Reliable Functionality

The KI 6610 Handheld FiberSafe Inspection  Microscope provides 200x magnification and comes with a 2.5mm universal adapter. It is the microscope of choice to check fiber optic connector end face quality.A combination of versatile and rugged design, easy operation, quality optics and durable construction ensures that this equipment will enhance the performance of installation and maintenance staff. Options are suitable for all fiber types including SM / MM / MPO / POF, and many connector styles.x200 magnification is ideal for general installation & maintenance checking by entry level staff, on single mode, multimode or HCS fiber. Faults that cannot be seen are unlikely to affect connector performance, focusing is easier, and battery life is longer. The x200 option is also used with the range of MPO adaptors for checking any style of MPO tip. The adaptor includes a traversing mechanism, and multiple fiber rows are easily viewed using the X-Y adjustment.

The KI 6611 Handheld FiberSafe Inspection  Microscope provides 400x magnification and comes with a 2.5mm universal adapter. It is the microscope of choice to check fiber optic connector end face quality. A combination of versatile and rugged design, easy operation, quality optics and durable construction ensures that this equipment will enhance the performance of installation and maintenance staff. Options are suitable for all fiber types including SM / MM / MPO / POF, and many connector styles. x400 magnification is optimized for 1 mm POF end face inspection. It also optimized to work with KI28800 series source for MPO cable verifications.

The digital inspection kit FIT-FCSW-KIT2 includes a FiberChek Sidewinder probe, a WIFI case , 5 inspection tips and a tip case. The FiberChek Sidewinder probe is a completely automated solution to inspect and analyze every fiber of an MPO or other multifiber connector with industry-leading reliability and speed. With 100% autonomous operation, technicians of any skill level have everything they need in a portable MPO inspection microscope.  The integrated touchscreen display gives users full control to view live images and analysis results, pan & scroll across the end face to view each fiber, and easily navigate results.  Navigate and select your desired acceptance criteria including IEC-61300-3-35 or customer-specific requirements. Store, name, and recall test results directly on the device. key benefits Fully autonomous multifiber inspection Automate the inspection workflow Certify end face quality to customer requirements Ensure accurate and fast test performance with automatic test results in under 12 seconds Easily access connections in any location Connect with anything and test anywhere! The FiberChek Sidewinder probe kit FIT-FCSW-KIT2 includes: FiberChek Sidewinder probe WiFi Case FCPP-OLA-1 FCPT-MTP FCPT-MTPA FCPT-UFBPT FBPP-BAP1 tip case
