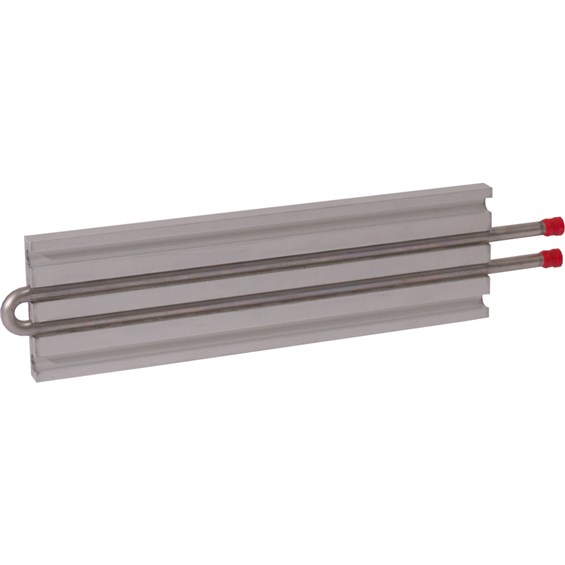

CP10G07 Aluminum Cold Plate with 2-Pass Stainless Steel tube, straight fittings

0.003 K/W to 0.055 K/W; 4 l/min to 80 l/min; Power Semiconductors; square Our high performance cold plates made from friction stir welded aluminium are the ideal solution for cooling demanding power semiconductors and modules. Within our range, a variety of models are available from a 1.4 kg cold plate dedicated to one press pack disk semiconductor all the way to a large and powerful 22.6 kg version capable of dissipating the heat of six 140 mm x 190 mm IGBT modules. In addition to various standard configurations, our thermal management experts are happy to customize solutions regarding thermodynamics and fluid dynamics as well as the configuration of power modules. The use of friction stir welding technology (FSW) makes the production of our cold plates both safe and economical. Friction stir welding technology permits particularly homogeneous joints without additional welding material. Due to this homogeneity of the material, FSW joints are particularly corrosion-resistant and can withstand high loads. With their high heat dissipation capacity, the cold plates are suitable for the following applications, among others: 62 mm Power Semiconductor Modules 150 x 166 mm Cold Plates 140 x 190 mm Power Semiconductor Modules PrimePACK 3 Power Semiconductor Modules EconoPack Power Semiconductor Modules Press-Pack Discs Aluminium water cold plates for IGBT modules are available in standard configurations, suitable for 130x140, 140x190, Semikron SKiiP3 and 4, SKiM63 and 93, Semipack2, Infineon PrimePACK2 and PrimePACK3, EconoDual3, Fuji Electric High Power 6-Pack, Mitsubishi/Powerex Mega Power Dual IGBT and others. When cooling press pack power semiconductor discs, even and uniform pressure distribution is very important. Our FSW cold plates, specially designed for cooling press packs, are suitable for 4", 5" and 6" discs, offering a solid construction, perfectly flat surfaces for an optimal contact to the power semiconductor as well as very good thermal performance. For optimum handling, we offer different options for centering the Press Pack discs as well as tools for replacement.

Aluminum fin, stub-end, 1440 W, maximum pressure 150 psi, unpainted, fan plate included. Aavid-Boyd's (formerly Lytron's) copper OEM Coils™ are the ideal solution for large volume, price sensitive users who need a high quality, cost effective part however the appearance of the heat exchanger is not critical, such as when the heat exchanger is hidden inside of the equipment.

Aluminum fin, stub-end, 7600 W, maximum pressure 150 psi. Aavid-Boyd's (formerly Lytron's) 6000 Series™ is an attractive, high performance heat exchanger that delivers efficient heat transfer and maximum reliability in a compact package. These heat exchangers have copper tubing expanded into copper cooling fins. They are electro-static dip painted for hostile environments and all units are supplied with built-in, fan-ready mounting hardware.
