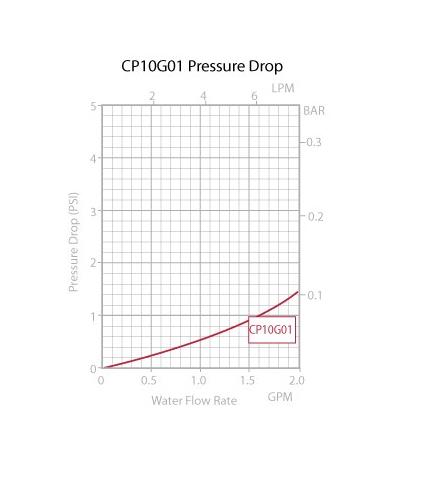

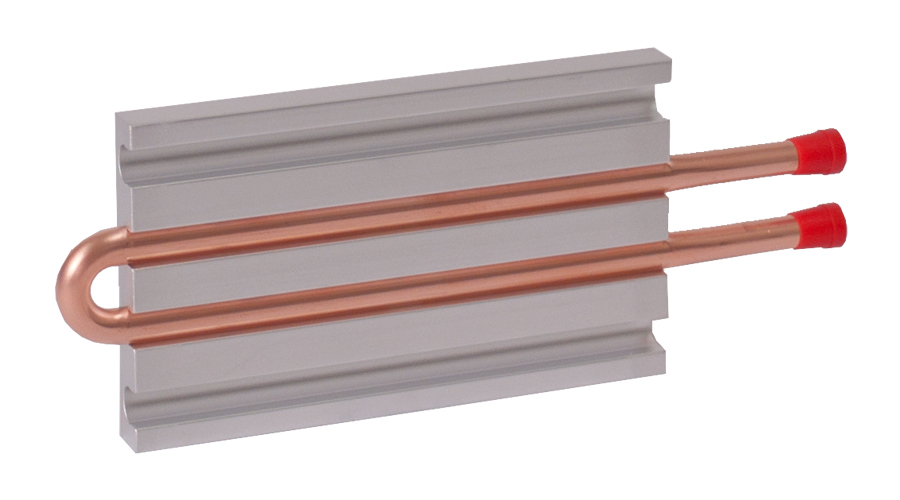

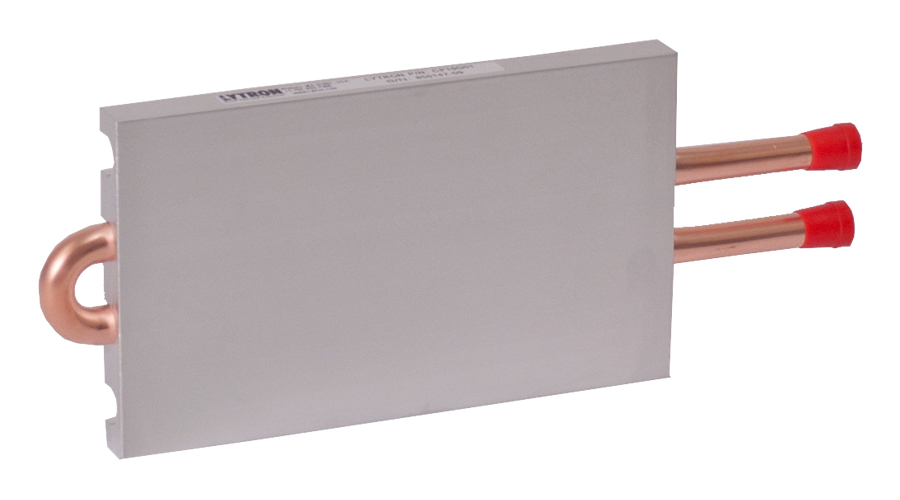

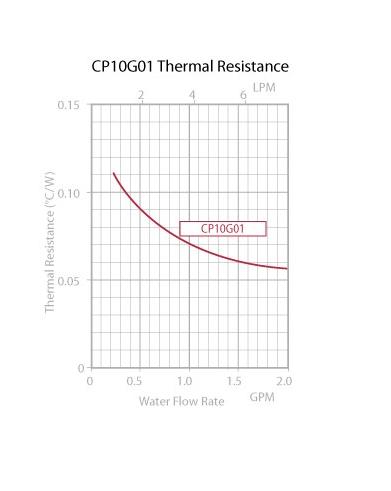

CP10G01 Aluminum Cold Plate with 2-Pass Copper tube, straight fittings

25 to 2,000 pF; 4.5 to 33 kV Vacuum capacitors for high voltage and high frequency applications offer long, maintenance-free service life and the ability to withstand transients that destroy other types of capacitors. Vacuum assures oxidation-free surfaces and a dielectric that is self-healing when subject to transient over-voltage conditions. This series of fixed vacuum capacitors offers capacitances of 25 to 2,000 pF, withstanding working voltages at 50/60 Hz in the range of 4.5 to 33 kV. In addition to this working voltage, a value for AC test voltage is quoted in this series’ product specifications. The maximum operating current for vacuum capacitors is limited by temperature rise and working voltage. A current vs. frequency chart is provided for each capacitor. If none of our standard catalog models meet your needs, our supplier`s engineers are happy to work with you to design a custom solution that meets your specific requirements. Capacitance Tolerance: Fixed capacitors with a nominal capacitance above 50 pF shall be within ±5%. Capacitors with a nominal capacitance of 50 pF or less shall be within ±10%, or 0.5 pF, whichever is greater. Testing Standards: All capacitors are factory tested for dielectric strength on a 100% basis prior to shipment, using a low current, high potential source at 60 Hz voltage. Upon customer request, certified test reports will be made available. Key Features: High Voltage Rating High RF Current Ratings for normal convection cooling in ambient temperature of +25 °C (unless otherwise specified) Maximum Allowable Temperature: +125 °C Low Losses Self-healing High Altitude Operation Mounting Position: Any Typical Applications: Broadcast Radio Transmitters; Semiconductor Manufacturing Equipment; Plasma Generating Equipment; Industrial Dielectric Heating Equipment; Power Switching and Interrupting; Avionic and Mobile Radio Systems; Radar Antenna Switching; MRI and NMR; High Voltage Capacitor Banks

Cooling Capacity 20, 150 kW; Connections 3/4'' FNPT, 2” Copper Flange; Temperature Stability ±0.5, ±1.0 °C; Facility Water Temperature +10 to +35 °C, +4 to +12 °C; CE Certified Lytron’s LCS series of liquid-to-liquid cooling systems is an excellent solution for high heat-load or high ambient temperature applications where chilled facility water is available. The LCS series offers precise temperature control of process water and transfers the waste heat to your facility water via a liquid-to-liquid heat exchanger. With 20 kW of cooling, Lytron’s LCS20 provides over three times the capacity of a comparably-sized recirculating chiller, providing a great solution for high heat loads where space is at a premium. Designed for data center cooling, Lytron’s LCS50 is a 150 kW liquid-to-liquid cooling system that supplies precisely temperature-controlled coolant to your liquid cooled racks and transfers the waste heat to facility water. Key Features: Large Cooling Capacity (20, 150 kW) in a Compact Package Tight Temperature Control: ±0.5, ±1.0 °C (Despite Fluctuations in the Facility Water Temperature and Flow Rate) Contamination-free: Process Cooling Loop Isolated from the Facility Water Reliable, Quiet and Energy-efficient Fluid Connections: ¾” FNPT (LCS20), 2” Copper Flange (LCS50) Coolant Temperature Range: +10 to +60 °C (LCS20), +5 to +35 °C (LCS50) Facility Water Temperature Range: +10 to +35 °C (LCS20), +4 to +12 °C (LCS50) Facility Flow Rate: 8 to 38 l/min (LCS20), 95 to 379 l/min (LCS50) Maximum Facility Pressure: 7 bar Ambient Temperature Range: +5 to +40 °C Applications: Electronics Cooling; High Heat-load or High Ambient Temperature Applications Where Chilled Facility Water is Available

Vapor Compression Chiller; 1000 W @+35°C (amb)/+25°C (water); Flow Rate 5.5 lpm @ 0.5 bar, Temperature Stability ≥±0.05 K at constant load; Power Supply 90-264 VAC Key Features: Recirculating Water Chiller Easy to be Integrated in Customer Application User-Definable PID Parameters and Fan Velocity Silent Operation with Low Vibration and Noise Ideal for Water Cooling Tasks up to 1000 W Customizable booster cooling capacity IoT Ready as an Option: Remote Operation, Monitoring and Service over Integrated Ethernet Interface Depending on the temperatures of coolant (water) and ambient, AMS Technologies’ mRC-C-1000-100/240 recirculating chiller provides approximately 1000 W (Twater = +25°C, Tambient = +35°C) in silent mode boostable to higher cooling capacities with higher fan speeds. The chiller contains a compressor-based refrigerant circuit as well as a closed, recirculating coolant (water) circuit. Due to its speed-controlled compressor, the mRC-C-1000-100/240 recirculating chiller offers low vibration and noise throughout the compressor’s BLDC speed range. The system’s features include global operability due to a universal 90 to 264 VAC power supply, as well as an optional integrated Ethernet interface allowing remote operation, monitoring and service. Further options are a gear pump providing 5 bar @5 l/min, CPC inlet and/or outlet fittings, external coolant filters or dust filters, and a hardware set for 19” rack mount (6U). For lower heat loads, we also carry a mRC-C-450-100/240 mini Recirculating Chiller with up to 450 W cooling capacity. Specifications: Cooling Capacity: nominal 1 kW (Twater = +25 °C, Tambient = +35 °C) Temperature Stability: +-0.05°C at constant load Available Pressure Head: 0.5 bar @ 5.5 lpm (standard), 5 bar @ 5 lpm (optional) Control: Local, RS232, IoT Ready, Interlock Power Supply: 90 to 264 VAC, 24 VDC Derivative for OEM integrations available on Demand Power Consumption: <750 W Options: 19” Rack Mount (6U); Ethernet / IoT Ready; Optional Pumps; CPC Inlet/Outlet Fittings; External Coolant Filters; External Dust Filters; Green Version Based on Propane (R290) as Refrigerant Dimensions: 443 x 283 x 675 mm, Main Body Without Filter Approval: CE (in process) Applications: Water Cooling of Lasers and Other Applications with up to 1000 W Heat Load

Aluminum Cold Plate 6"x3,5", 15.24 cm x 8.89 cm with 4-Pass 3/8" Stainless Steel tube, beaded fittings
