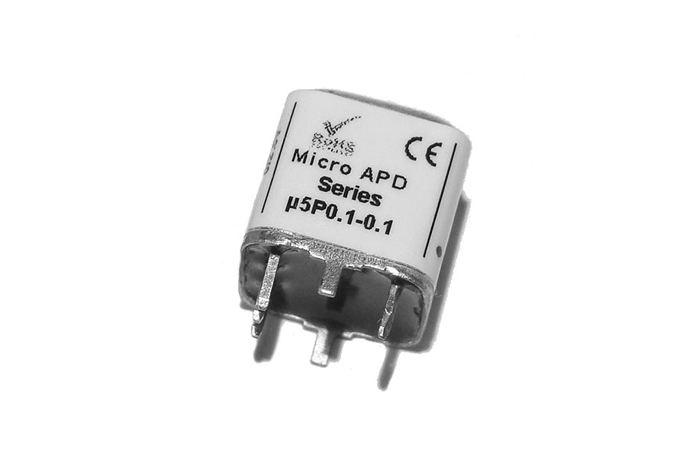

µAPD5P0.1-0.1 (former µ5P101102) High Voltage DC/DC Converter

SDS High Voltage

€94.25*

Prices excl. VAT plus shipping costs

Available in 20 days, delivery time 1-2 days

Product number: C014096-6

Downloads

Product information "µAPD5P0.1-0.1 (former µ5P101102) High Voltage DC/DC Converter"

Input Voltage 5 VDC; Output Voltage 100 VDC; Output Power 0.1 W; PCB flat Mounting; Positive Output Voltage

This item is compatible with Advanced Energy item number 0.1XS5-P0.1

Further variants of this series with various inputs, outputs voltages and powers are available. For more information or to place an order please look into the datasheet or contact us.

Manufacturer "SDS High Voltage"
