AMS-71-2.0-1.5 (40x40) HT120 E L2 70K Thermoelectric Cooler Qmax 68 W

The AMS-71-2.0-1.5 is a high-performance thermoelectric cooler (TEC) designed for precise thermal regulation in industrial, medical, and scientific applications. With a Qmax of 68W and a maximum temperature differential (dTmax) of 70K, this high-efficiency Peltier module ensures stable and reliable cooling performance for semiconductors, laser systems, medical devices, and industrial electronics.

Manufactured with high-quality Al₂O₃ ceramic materials, this 40x40 mm TEC module provides exceptional heat dissipation, structural durability, and long-term operational reliability. The low electrical resistance (Rac 0.52Ω) enhances power efficiency, making it an ideal solution for high-performance cooling applications.

Key Features

• High Cooling Capacity – Provides a Qmax of 68W, ensuring efficient heat dissipation for demanding applications.
• Optimized Electrical Efficiency – Operates at Umax 8.9V and Imax 12.4A, delivering stable and energy-efficient cooling.
• Wide Temperature Differential – With a dTmax of 70K, this TEC module ensures precise thermal management across diverse environments.

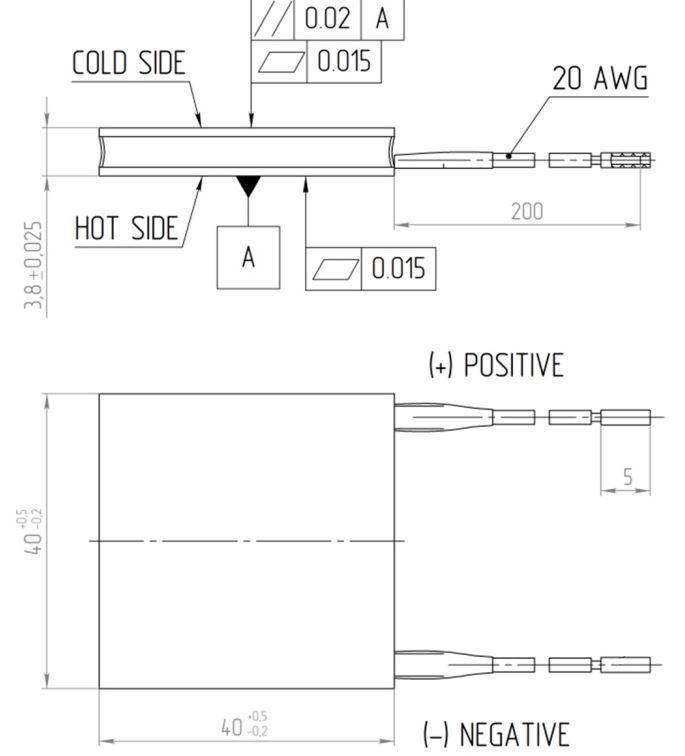

• Compact and Durable Design – Features a 40x40 mm rectangular form factor with a 3.8 mm height, making it suitable for compact cooling solutions.
• High-Quality Ceramic Construction – Built with Al₂O₃ ceramic, providing superior thermal conductivity and mechanical stability.
• Low Electrical Resistance for Maximum Efficiency – With Rac of 0.52Ω, it minimizes power loss while maintaining optimal cooling performance.
• Reliable Lead Wires – Equipped with 22 AWG wires, featuring 200mm stripped leads without tinning, ensuring secure and stable electrical connections.
• ROHS Compliant and Epoxy-Sealed – Designed for long-term durability and environmental safety, ensuring compliance with industry standards.

Applications

• Semiconductor Thermal Management – Provides efficient cooling for high-performance chips, processors, and sensors, preventing overheating and improving system efficiency.
• Medical and Laboratory Equipment – Ensures precise temperature stability in diagnostic instruments, cryogenic research devices, and laser-based medical systems.
• Laser and Optoelectronic Systems – Supports efficient heat dissipation in high-power laser diodes, optical sensors, and photonic instruments.
• Industrial Electronics and Instrumentation – Maintains stable operating temperatures for precision testing equipment, automated systems, and electronic control units.
• Aerospace and Automotive Thermal Management – Provides reliable cooling solutions for high-performance automotive, aerospace, and satellite applications.

What’s Next?

The AMS-71-2.0-1.5 Thermoelectric Cooler is an energy-efficient, high-performance TEC module, ideal for critical applications requiring precise thermal regulation. With its advanced thermoelectric technology, this module ensures long-term durability and optimal cooling efficiency for high-power cooling solutions.

For technical support, product availability, or customized thermal solutions, consult a thermal engineering expert to integrate this TEC into your system.
