AMS-71-1.0-1.5 (23x23) HT120 E L2 69K Thermoelectric Cooler Qmax 16.7 W

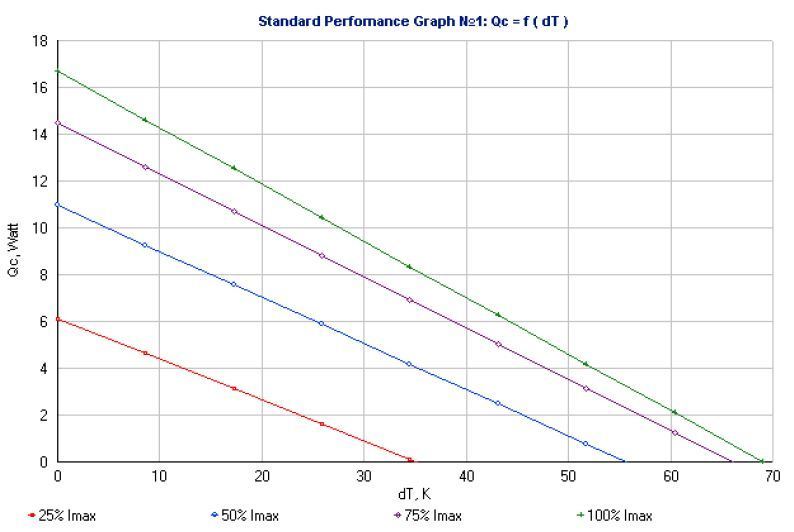

The AMS-71-1.0-1.5 is a high-performance thermoelectric cooler (TEC) designed for precise thermal regulation in scientific, industrial, and medical applications. With a Qmax of 16.7W and a maximum temperature differential (dTmax) of 69K, this compact Peltier module delivers stable and reliable cooling performance for semiconductors, laser systems, medical devices, and industrial electronics.

Manufactured with high-quality Al₂O₃ ceramic materials, this 23x23 mm TEC module ensures efficient heat transfer, structural durability, and long-term operational reliability. The low electrical resistance (Rac 2.05Ω) enhances power efficiency, making it an optimal choice for high-precision cooling applications.

Key Features

• Reliable Cooling Performance – Provides a Qmax of 16.7W, ensuring efficient heat dissipation in demanding applications.
• Optimized Electrical Efficiency – Operates at Umax 8.8V and Imax 3.1A, delivering stable and energy-efficient cooling.
• Wide Temperature Differential – With a dTmax of 69K, this TEC module offers excellent thermal control in diverse environments.

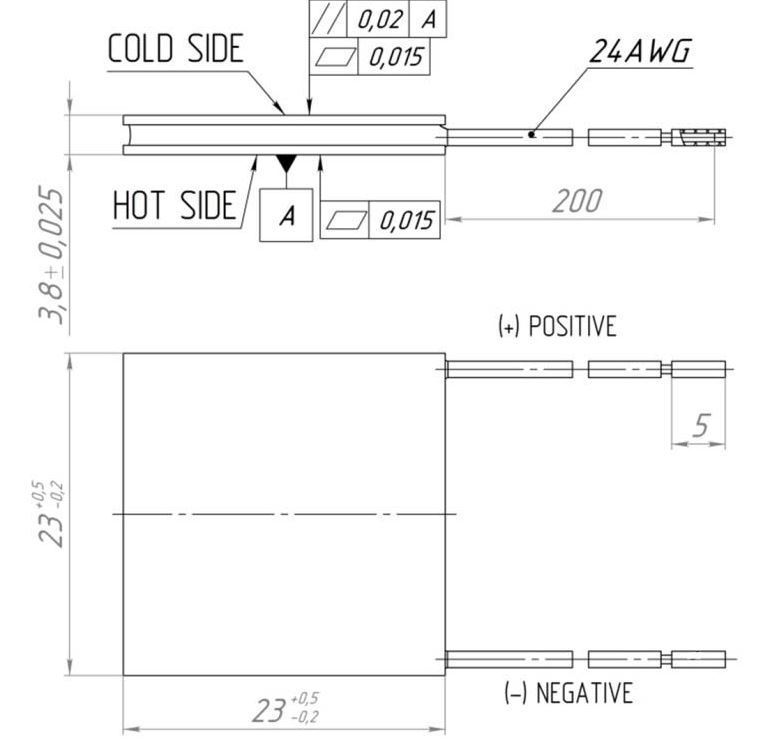

• Compact and Durable Design – Features a 23x23 mm rectangular form factor with a 3.8 mm height, allowing easy integration into cooling systems.
• High-Quality Ceramic Construction – Built with Al₂O₃ ceramic, providing superior thermal conductivity and mechanical stability.
• Low Electrical Resistance for Maximum Efficiency – With Rac of 2.05Ω, it minimizes power loss while maintaining consistent cooling performance.
• Reliable Lead Wires – Equipped with 22 AWG wires, featuring 200mm stripped leads without tinning, ensuring secure electrical connections.
• ROHS Compliant and Epoxy-Sealed – Designed for long-term durability and environmental safety, ensuring compliance with industry standards.

Applications

• Semiconductor Thermal Management – Provides efficient cooling for high-performance chips, processors, and sensors, preventing overheating and improving system efficiency.
• Medical and Laboratory Equipment – Ensures precise temperature stability in diagnostic instruments, cryogenic research devices, and laser-based medical systems.
• Laser and Optoelectronic Systems – Supports efficient heat dissipation in high-power laser diodes, optical sensors, and photonic instruments.
• Industrial Electronics and Instrumentation – Maintains stable operating temperatures for precision testing equipment, automated systems, and electronic control units.
• Aerospace and Automotive Thermal Management – Provides reliable cooling solutions for high-performance automotive, aerospace, and satellite applications.

What’s Next?

The AMS-71-1.0-1.5 Thermoelectric Cooler is an energy-efficient, compact TEC module, ideal for critical applications requiring precise thermal regulation. With its advanced thermoelectric technology, this module ensures long-term durability and optimal cooling efficiency for high-performance cooling solutions.

For technical support, product availability, or customized thermal solutions, consult a thermal engineering expert to integrate this TEC into your system.
