546L.00.10.550 Laser Safety

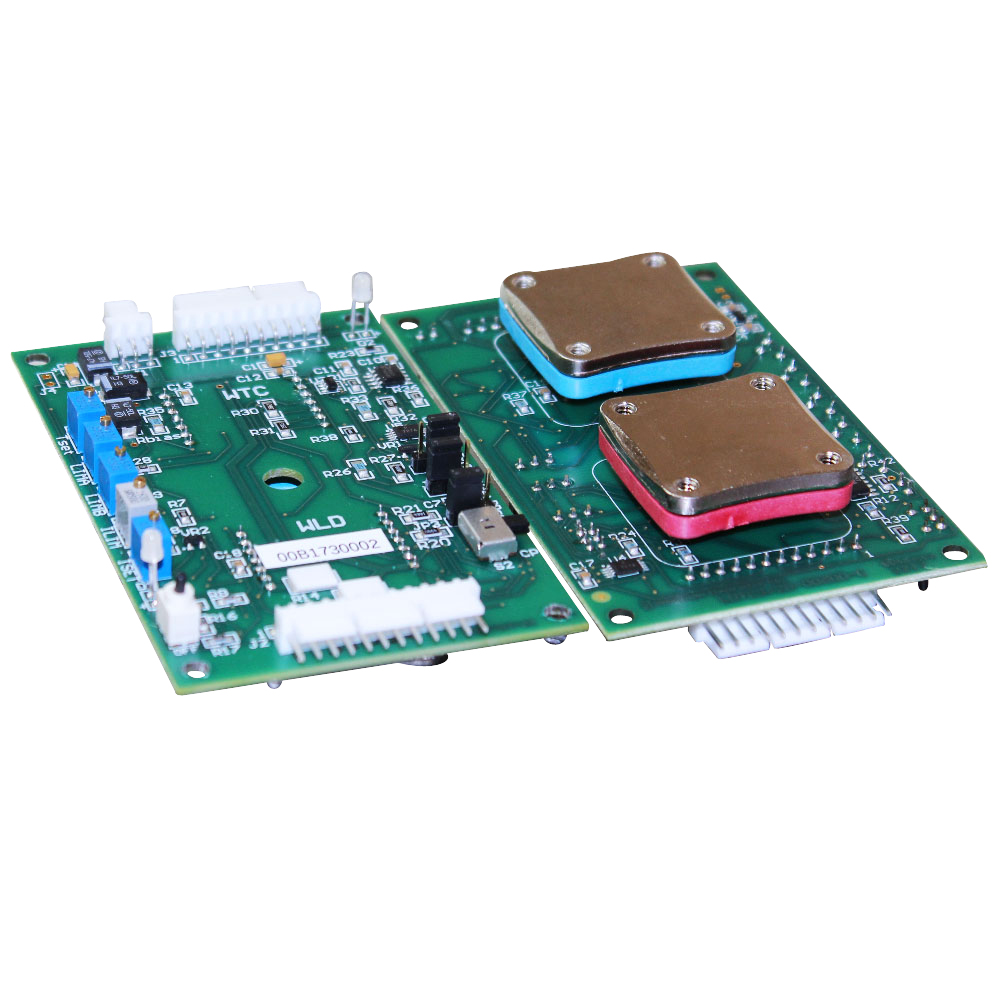

Combine the drive power of the WLD3343 with the temperature stability of the WTC3243.The LDTC 2/2 combines a 2.2 Amp laser driver and 2.2 Amp temperature controller on one small board. Available as an open frame or in a chassis mount enclosure. The WTC3243 will control temperature using thermistors, RTDs, or linear temperature sensors such as the LM335 or the AD590. Adjust temperature using the onboard trimpot or a remote voltage input from a panel mount potentiometer, DAC, or other voltage source. A default temperature setpoint configuration provides fault tolerance and avoids accidental damage to system components. Adjustable trimpots configure heat and cool current limits.The heart of the laser driver section is the WLD3343 2.2 Amp Laser Driver. It maintains precision laser diode current (Constant Current mode) or stable photodiode current (Constant Power mode) using electronics compatible with A/B Type lasers.Key Features Laser Diode Driver: Default current range is 2.2 A. Custom ranges,from 3 mA up, are easily configured Slow start laser diode protection Constant Current or Constant Power modes Compatible with A or B type laser diodes Adjustable laser diode current limit Remote TTL Shutdown / Interlock Key Features Temperature Controller: Drive up to 2.2 A of TEC current Set temp using D/A - includes default to 1 Volt to avoid drive when D/A is turned off or signal is lost Ultra-stable PI control loop Separate Heat & Cool current limits Single power supply operation possible

frame: 561filter_code: UL-1007filter_type: Full protectionfilter_colour: Bluefilter_material: Polycarbonatevlt: 0.16alignment_wl: 425-555 nm

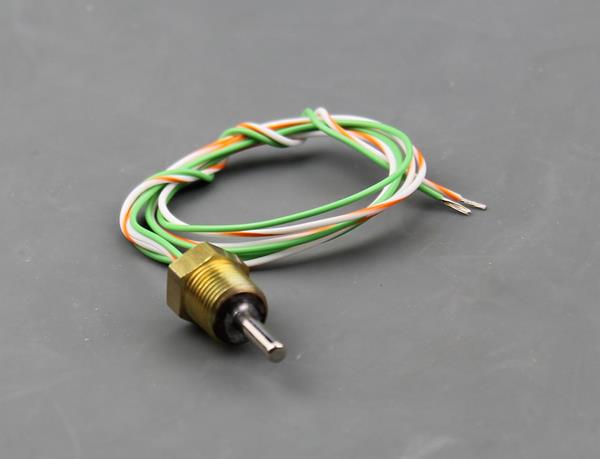

231.5 kΩ; ±1.0°C; 1/8" Pipe Plug Head; DIA 3.2x12 mm; Brass

frame: 546filter_code: UL-1005filter_type: Full protectionfilter_colour: Greenfilter_material: Polycarbonatevlt: 0.33alignment_wl: 470-650 nm

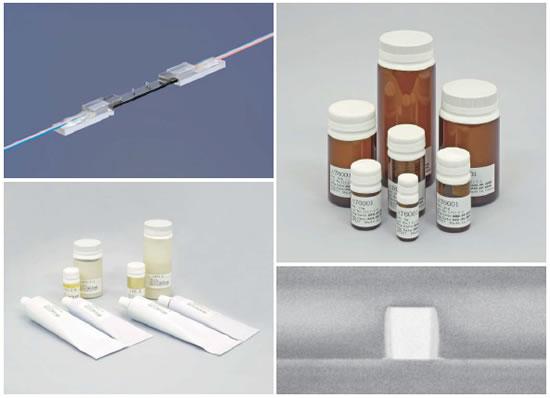

Adhesive;High Precision;Epoxy;500g
